ercolith®

fast - sustainable - cost-cutting.

for diverse and creative
architectural design -

Building with standardised, multifunctional and industrially prefabricated module systems made of infra-lightweight concrete -

Innovative construction 4.0

Infra-Lightweight Concrete (ILC)

EAD
340309-00-0305

Building authority
approval Z-15.2-43

*) Sand, gravel and crushed stone are by far the most extracted raw materials worldwide, with over 50 billion tonnes per year by 2060, with all the ecological and economic consequences that entails.

Source: OECD Global Material Resources Outlook 2060

81%

17%

pore volume

cement

water & additives

without sand
without gravel*)

100 %
reusable.

Infra Light-weight Concrete (ILC)

Specification

262-412 kg

Weight per wall module

0,09-0,22 W/m²*K

Thermal conductivity λ

1,6-2,8 N/mm²

Compressive strength

350-550 kg/m³

Bulk density

without sand
without gravel

100 %
reusable.

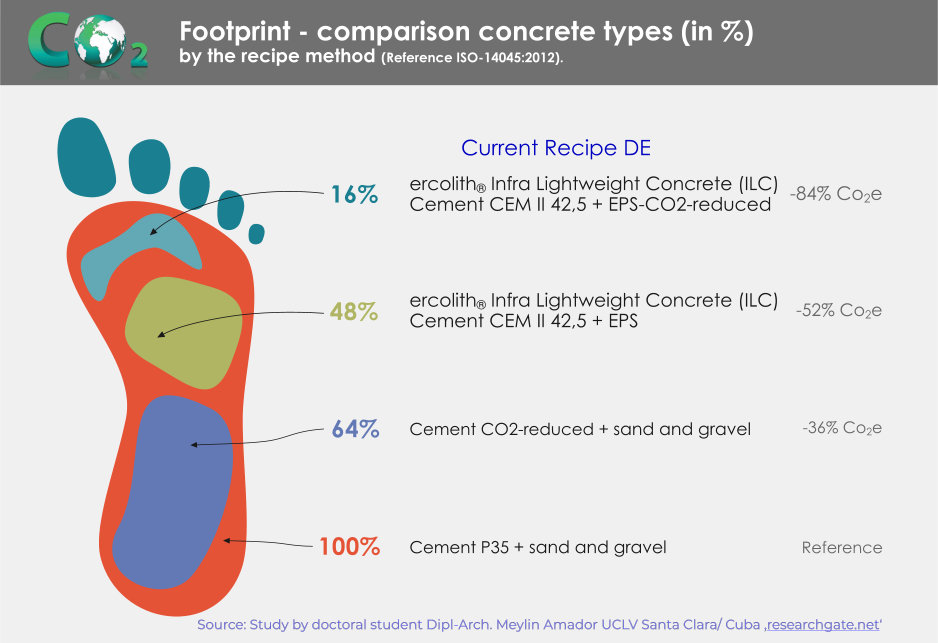

Infra light-weight concrete

CO2-footprint

without sand
without gravel

100 %
reusable.

Infra-Lightweight Concrete (ILC)

Module quick-build system modulith

for architects, construction companies and builders.

2 standard modules with the potential
to change the (construction) world,

Module quick-build system modulith 'm40'

dimensions & assembly

Building authority
approval Z-15.2-43

EAD
340309-00-0305

After assembly, the hollow cylinders are filled with lightweight concrete at the joint between the modules, and other hollow cylinders in accordance with the structural requirements are filled with reinforced in-situ concrete.

Storey-high wall module with vertical hollow cylinders -diameter 11 cm to 30 cm- and at both ends each a half-cylinder.

* Dimensions only for modulith '40'-
further sizes of module available

Hollow cylinder Ø*
30 cm

Modul height*
Planning room height

Modul thickness*
40 cm

Modul width*
140 cm

A new era of the construction with standard modules

Statics skeleton construction

The plastering work can then be carried out without delay.

(a) with in-situ concrete and reinforcement for load-bearing columns,
or
(b) with lightweight concrete without reinforcement.

2. Concreting the hollow cylinder - this creates

1. with placement of the wall modules arise

- the formwork for the pillars,

- the wall infilling between the pillars,

- the complete external wall insulation (without ETICS).

Statics: Skeleton construction in 2 steps

design 'm40'

without any major additional installation work.

starting point for diverse
and creative architectural designs,

Angular cuts from standard modules:

design variants 'm40'

without any major additional installation work.

starting point for diverse
and creative architectural designs,

Angular cuts from standard modules:

modules editing

Easy2Use

creative

chisels

drilling

milling

sawing

sawing
milling
drilling
chisels

easy processing of the modules with
simple hand tools or industrial cut:

Editing the infra light-weight concrete modules

economic effects

*) minus 50% assembly time of the shell construction - compared to masonry and slipforming.

assembly*).

transport

building foundation

with significant savings potential
in the areas

time-saving,

manpower-saving

helps to avoid mistakes,

The innovative construction technology
for industrial housing construction

GWP comparison of building systems

> sustained.

> energy-efficient,

> resource-saving,

A new era of ecological building

areas of application 'm40'

Private commercial building
sports facilities
multipurpose buildings
hospitals
rehabilitation clinics
shopping centers
Supermärkte
station building
etc., etc.

Municipal & social buildings
Kindergardens
Schools
Medical centers
Polyclinics
Dormitories for students
Emergency and shared accommodation
Culture Centers

Public & infrastructure buildings
stores
kiosks
production halls
warehouses
office building
Hotels

Residential construction
Family houses
Slope-terrace construction
Double & Row Houses
Apartment buildings
Multi-storey blocks
Skyscrapers
Villas

Unlimited possibilities

special applications

Renovation of sound insulation
Sound insulation walls:
Good sound-damping properties due to the material change within the matrix structure , even by single-leaf walls.

Energetic renovation
Refurbishment measures:
As space-in space system or easy insulation & technical fire prevention refitting (example cold storage rooms, server rooms, etc.)

Refurbishment of fire prevention
Fire prevention walls/-rooms: use for fire barrier, bulkheadings,
Fire prevention cladding;
Fire resistance F120, fire prevention class A2-s1, d0, German Institute for Standardization
DIN EN 13501-1

suitably for tropics

earthquake-proof

sound-absorbing

water resistant

storm-resistant

fire-resistant

Fire protection and refurbishment

0 min

bis

references

International:
each one model house to Morocco and Saudi-Arabia.

Project for Villeroy & Boch:
approx. 120 bath units inclusive interior walls for a project "age-appropriate living";

Germany:
about 50 houses and
about 150 cellars;
